A complete range of steel electrical conduits and accessories, manufactured to IS 9537/II (BS 4568 equivalent).
Black enamel painted steel conduit pipes (E.R.W), offering medium protection for indoor and surface electrical installations. Manufactured from hot-rolled or CRFH steel coil to IS 9537/II.

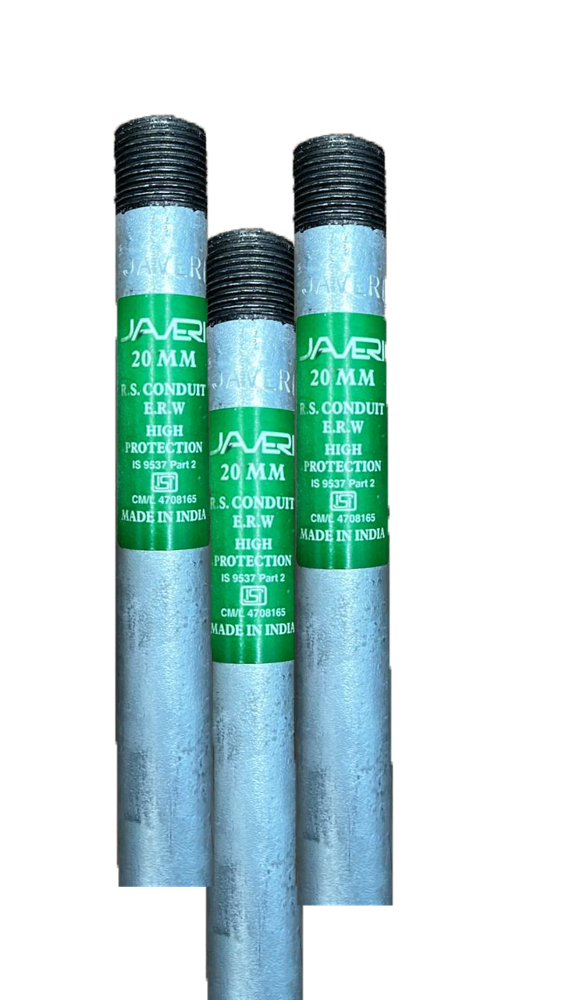

Hot-dipped galvanised steel conduit pipes offering superior corrosion resistance for demanding and exposed environments. Manufactured to IS 9537/II standards.
As per IS 9537/II. Available in both MS (black enamel) and GI (hot-dipped) finishes.
| Outer Diameter | Tolerance on Outer Diameter | Wall Thickness |
|---|---|---|
| 20 mm | +0.00, (−)0.3 mm | 1.6 mm ± 0.2 mm |
| 25 mm | +0.00, (−)0.4 mm | 1.6 mm ± 0.2 mm |
| 32 mm | +0.00, (−)0.4 mm | 1.6 mm ± 0.2 mm |
| 40 mm | +0.00, (−)0.4 mm | 1.9 mm ± 0.3 mm |
| 50 mm | +0.00, (−)0.5 mm | 1.9 mm ± 0.3 mm |

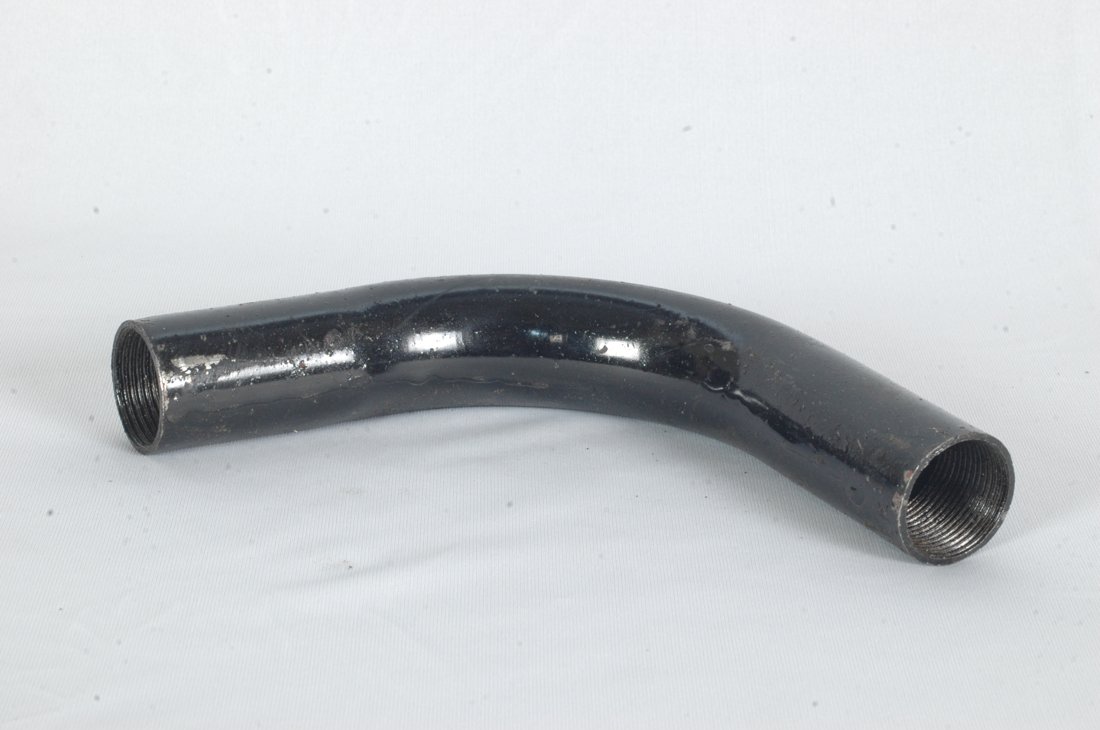

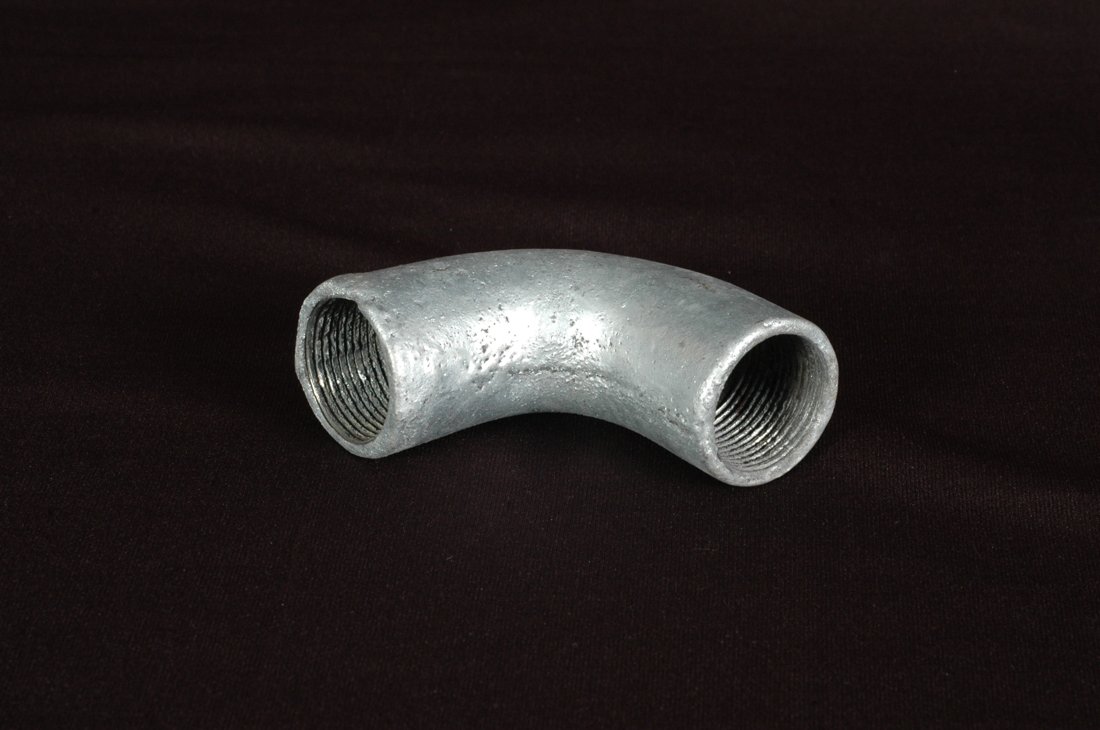

A full range of conduit fittings to complete any installation, available in MS and GI finishes.

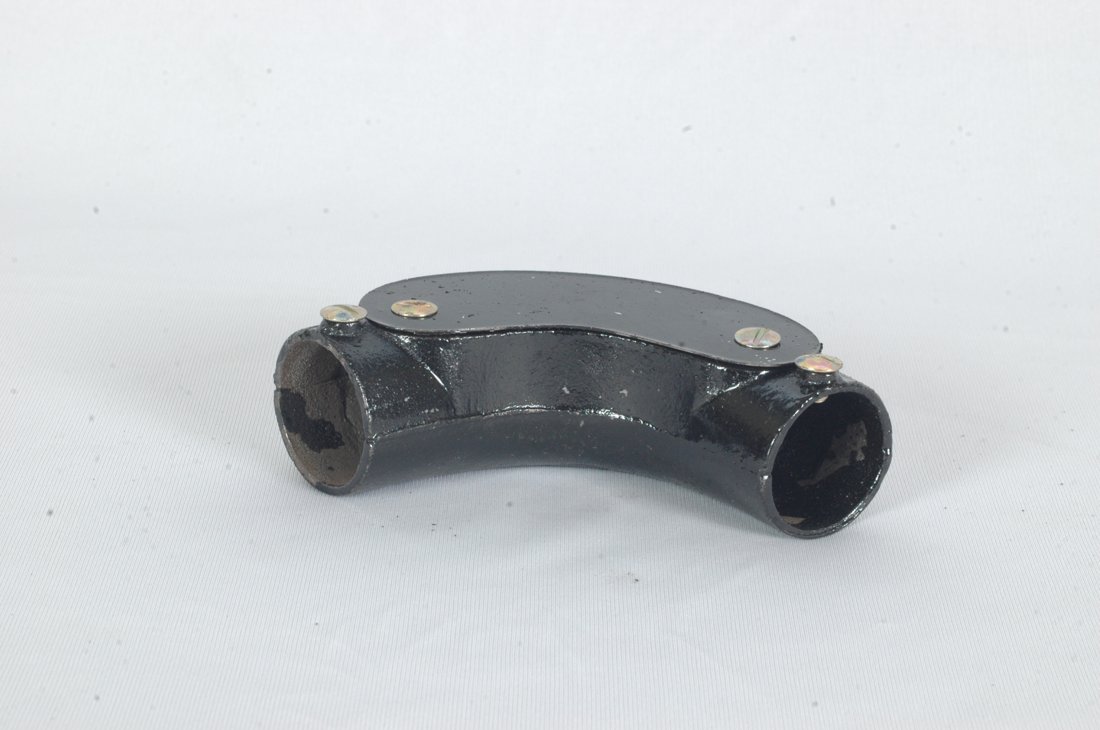

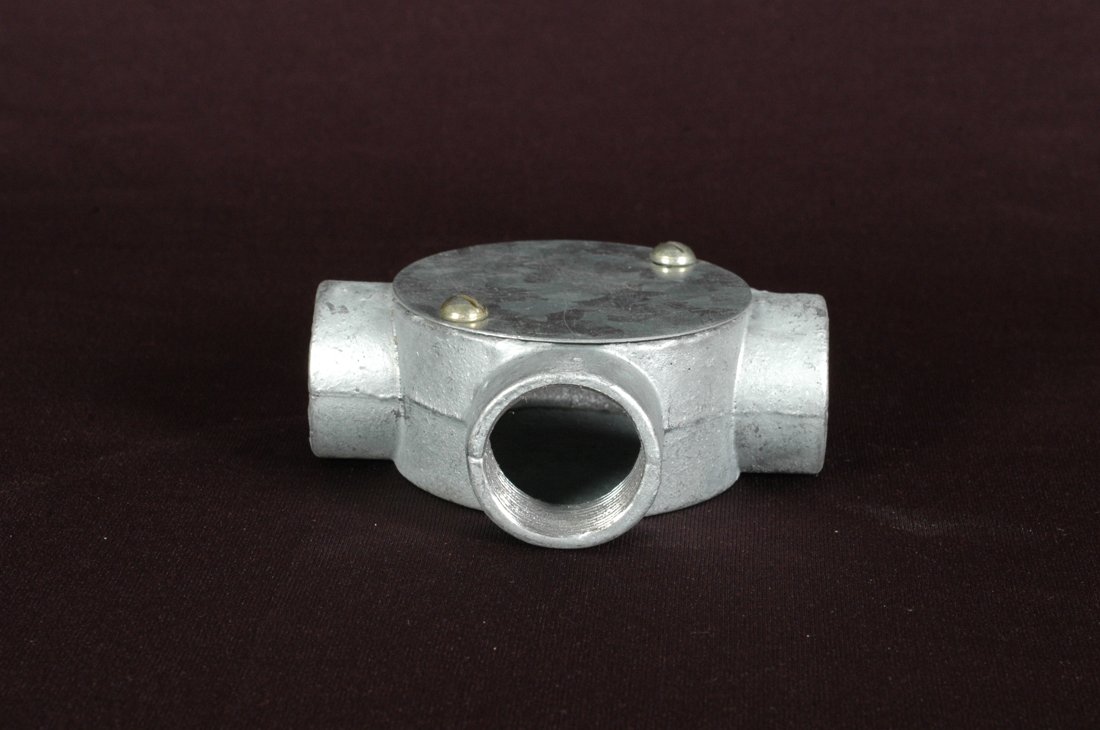

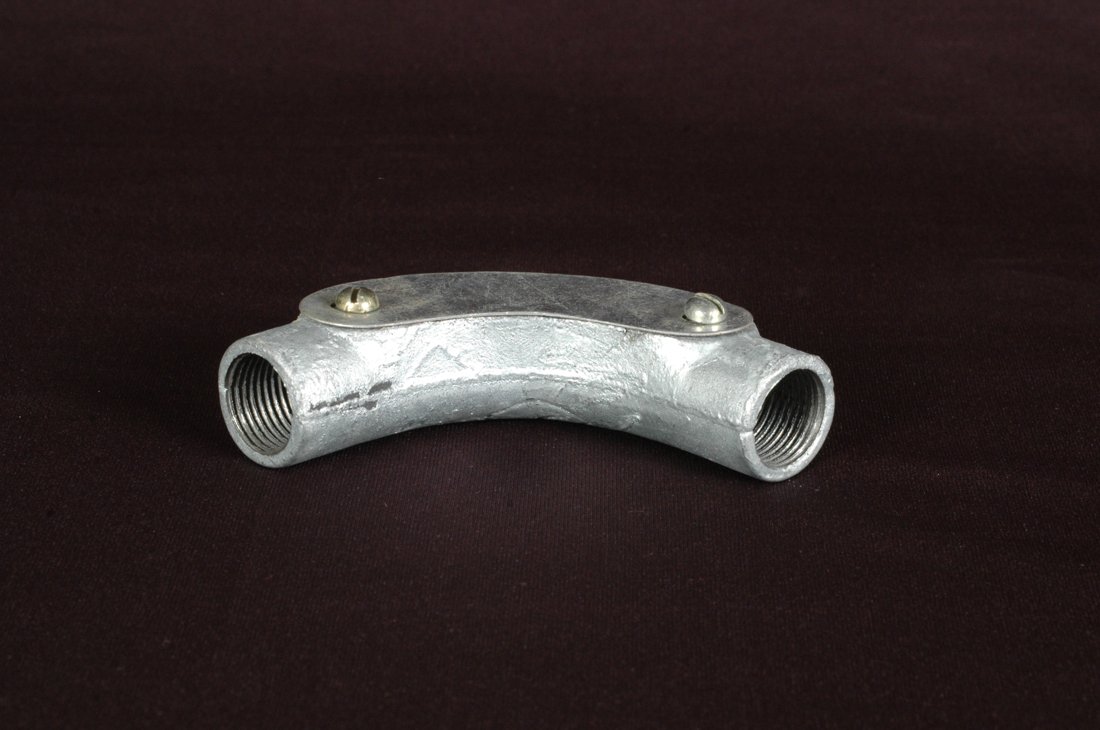

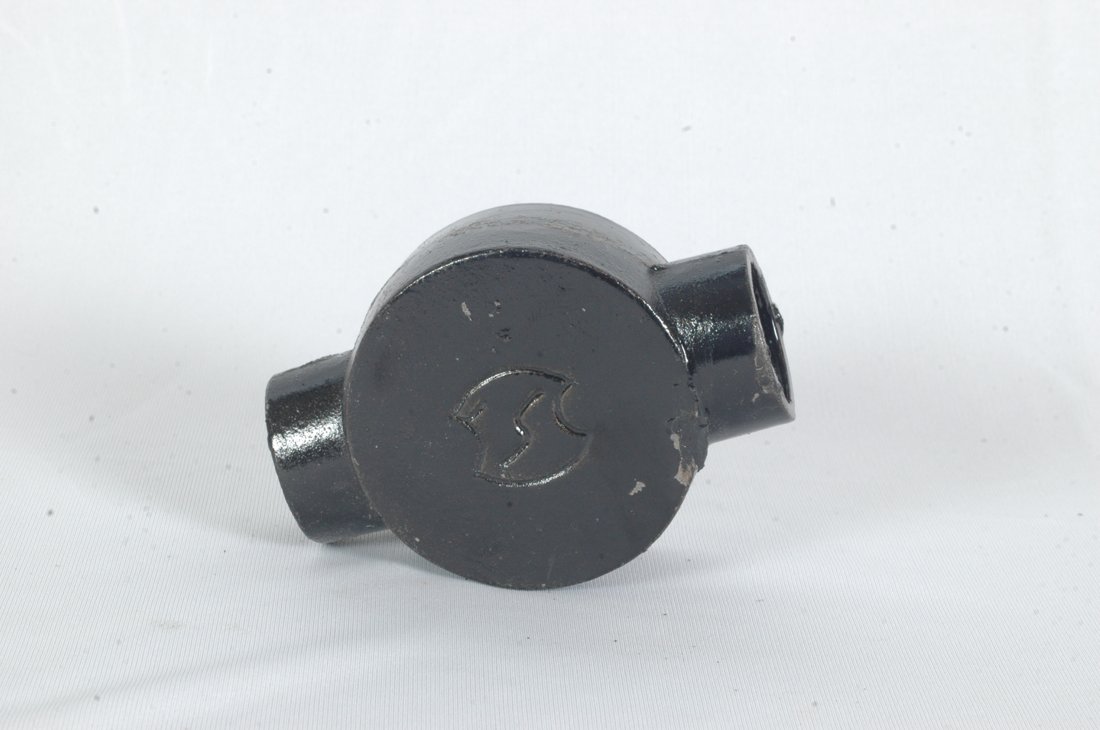

Also available: couplers, elbows, inspection tees, multi-way junction boxes (1, 2, 3 & 4 way), saddles and check-nut washers in both MS and GI finishes.
Download our full product catalogue and the current price list for MS & GI conduit.
Javeri steel pipe catalogue — full range, sizes, specifications and finishes.
Current price list for MS and GI conduit pipes.
Contact our sales team for pricing, sizes and availability.
